The 3PE coated anti-corrosion production line has good chemical corrosion resistance: it can resist the erosion of various chemical media, such as acid, alkali, salt, oxidant, etc. It is suitable for media transportation in different environments and prolongs the service life of the steel pipe.
- introduction
- Features
- Technical parameters
- Inquiry now
- Related products
Round-extrusion 3LPE anti-corrosion coated steel pipe has good chemical resistance: it can resist the erosion of a variety of chemical media,，such as acids, bases, salts, oxidants, etc，suitable for medium transportation in different environments,
prolong the service life of steel pipe. This kind of anti corrosive steel pipe is widely used in oil, natural gas transmission pipelines, water supply and drainage pipelines and many other fields.

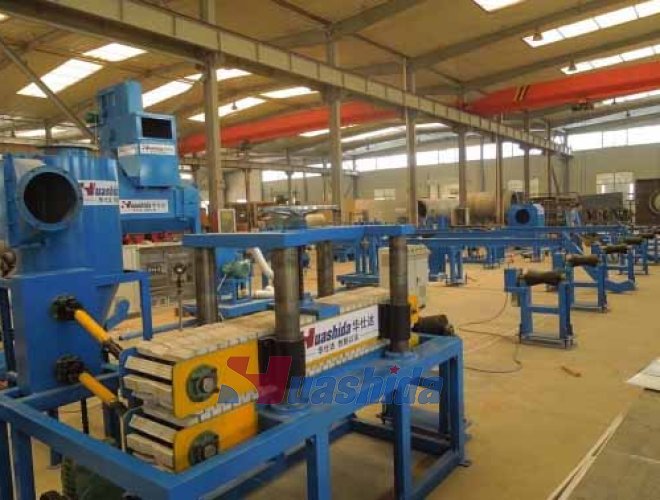

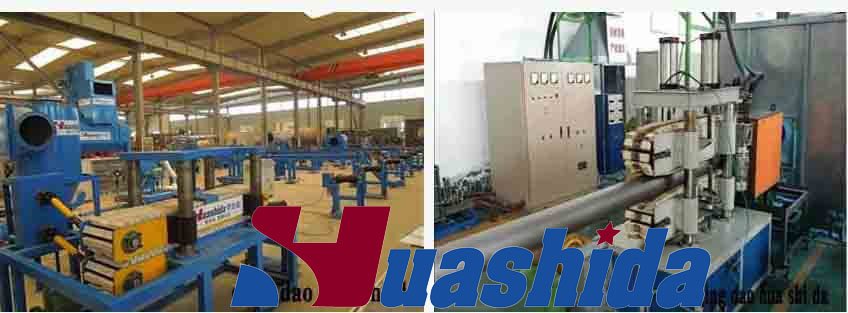

Conveyor of round-extrusion 3LPE coating line Rubber block feeding machine（Track feeding machine）

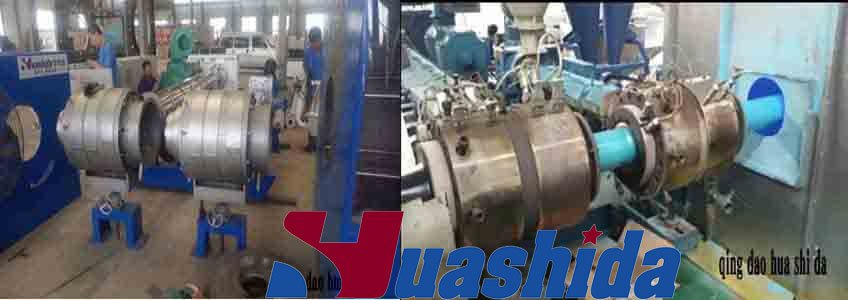

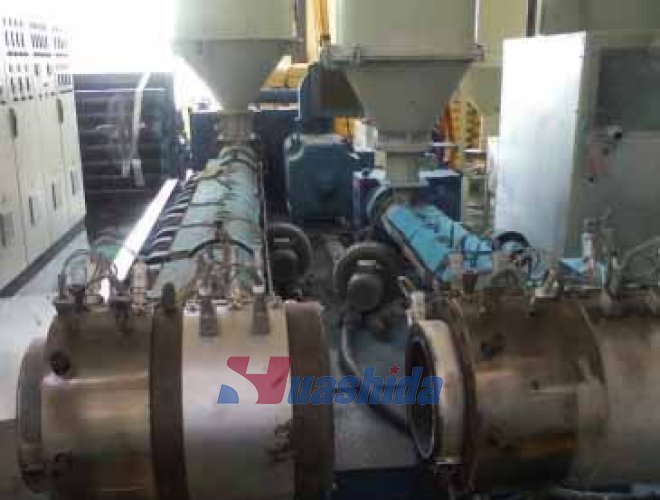

Extruding head of round-extrusion 3LPE coating line. polyethylene extrusion machine、adhesive extruding machine、extruding head

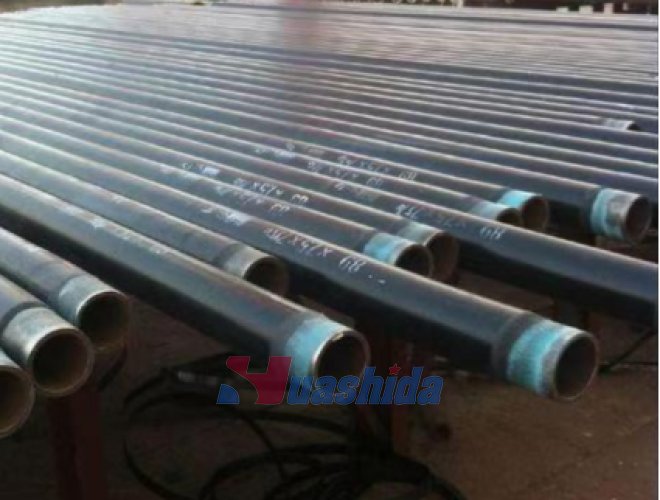

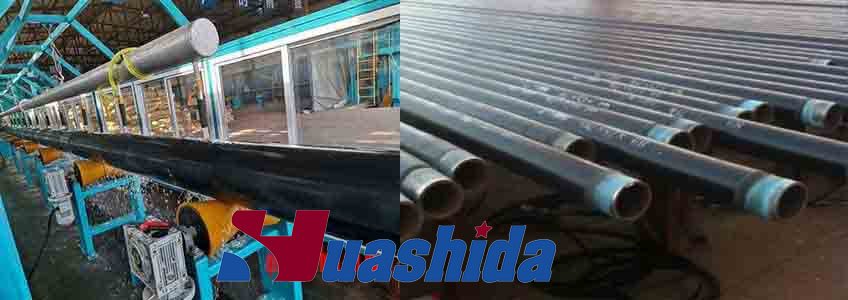

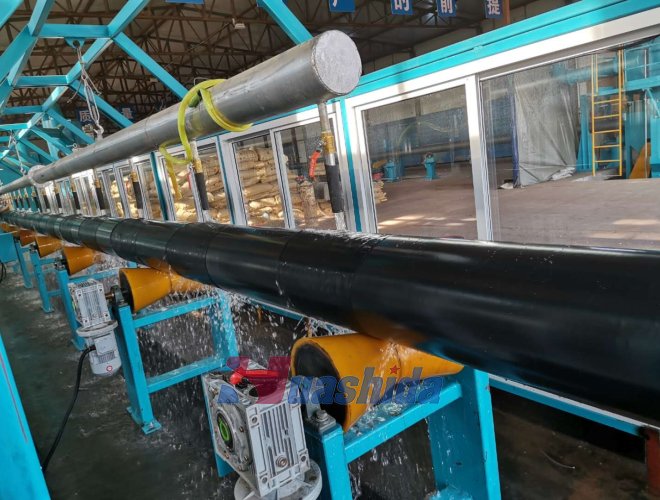

cooling system Coated 3PE finished pipe
Parameter of production line
（1）Steel pipe range：48mm-219mm
（2）Processing capacity：≤250㎡/h
（3）Cleaning level：Sa2.5
（4）Used material：Epoxy powder, adhesive, polyethylene
（5）Main equipment：Steel pipe external rust removal equipment、Medium frequency heating equipment、Epoxy powder external spraying equipment、AD adhesive extrusion equipment、PE polyethylene extrusion equipment、cooling device、PE beveling equipment、Spray mark equipment, etc
