Qingdao Huashida Machine Co., Ltd. Double-wall corrugated pipes play an important role in municipal drainage and sewage infrastructure, including sewer pipe networks and stormwater drainage systems. The double-wall corrugated pipe production line, also known as a DWC pipe extrusion line, is governed by strict, well-established industry standards. Based on common industry configurations and the mature complete-line solutions of mainstream manufacturers such as Qingdao Huashida Machine Co., Ltd., a professional double-wall corrugated pipe machine manufacturer in China, this guide offers a complete configuration plan as a useful reference when selecting HDPE and PP double-wall corrugated pipe equipment.

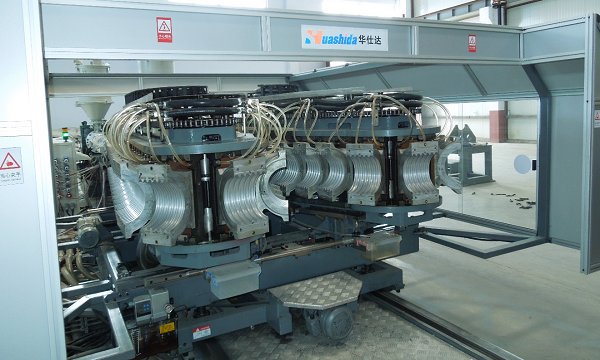

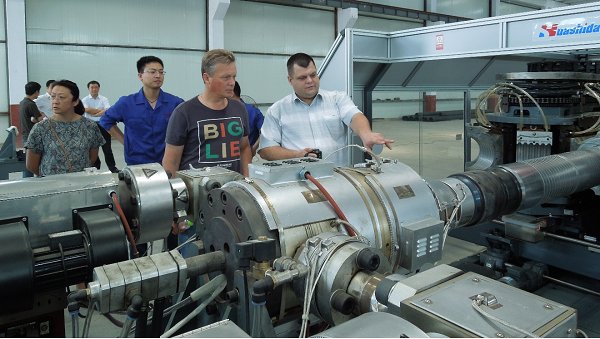

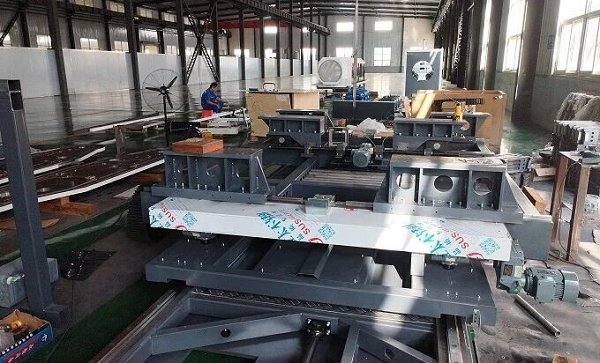

Complete Line Configuration of a Double-Wall Corrugated Pipe Production Line Beyond the five core machines, namely the main extruder, corrugator, belling machine, cutting machine, and loading machine, a complete double-wall corrugated pipe line also includes a single screw extruder such as the SJ90/33 as the outer-layer main extruder for the outer wall, and an inner-layer auxiliary extruder, a second extruder such as the SJ75/30, for the inner wall. Each extruder requires its own vacuum loading machine, so two sets are needed in total. A hopper dryer is also required, and some lines configure it for PE/PP raw material drying. The line further needs an extrusion die head and a double-channel spiral co-extrusion mold to achieve inner and outer layer co-extrusion, a vertical or horizontal corrugator with chain drive transmission, and corrugator mold blocks matched to the pipe diameter. Completing the line are a spray cooling water tank for cooling the pipe after forming, a vacuum pump system to assist vacuum forming, a planetary chip less cutting machine, an in-machine positive-pressure online belling machine applying Huashida’s proprietary technology, and a PLC control cabinet for centralized control of the entire line.
Why Scientific Line Configuration Matters for Stable Production A standard, scientific, and rigorously planned configuration is of great importance for double-wall corrugated pipe equipment. A DWC pipe line is a continuous co-extrusion forming system, and its configuration is not a simple stacking of machines. It is the foundation of the entire process capability, directly determining stable production, pipe product quality, energy consumption, operation and maintenance cost, and equipment service life. Double-wall corrugated pipe equipment relies on a continuous, high-speed extrusion molding process, where co-extrusion, vacuum forming, cooling, cutting, and belling are tightly sequenced, so a weakness in any single link can shut down the whole production line.
Well-Matched vs. Under-Specified Configuration With a scientific and well-matched configuration, extruder output capacity, corrugator line speed, cooling capacity, vacuum pump pumping rate, and belling response speed are properly balanced, avoiding bottlenecks such as “extrusion is fast but cooling can’t keep up” or “forming speed increases but belling can’t follow.” When items are missing or downgraded, for example an undersized cooling system or an insufficient vacuum pump, the line often suffers material shortage in corrugation forming, corrugation collapse, and pipe deformation. These forces reduced production speed and frequent stoppages for adjustment, lowering the effective uptime rate. A scientifically designed configuration ensures production continuity, reduces downtime and failures, and delivers a higher return on investment for pipe manufacturers.
